Structural length: GB/T 12221
Flange standard: HG/T 20592
Nominal pressure: PN6, PN10, PN16
Connection method: flange type
Pressure test: GB/T 13927
Index>Products>Fluoroplastic-Lined Sight Glass Series>Straight-Through Sight Glass
| Follow the standards | |
| Structural length: | GB/T 12221 |
| Flange standard: | HG/T 20592 |
| Nominal Pressure | PN6，PN10，PN16 |
| Connection method: | flanged |
| Pressure test: | GB/T 13927 |
| Main component materials | ||||||
| serial number | Part Name | carbon steel | stainless steel | Ultra low carbon stainless steel | ||
| C | P | R | PL | RL | ||
| 1 | valve body | WCB | CF8 | CF8M | CF3 | CF3M |
| 2 | glass | Tempered steel, high borosilicate, quartz | ||||
| 3 | Lining layer | FEP(F46)/PTFE(F4)/PFA | ||||
| 4 | bolt | 25# | 304 | 316 | 304 | 316 |
| 5 | nut | 25# | 304 | 316 | 304 | 316 |

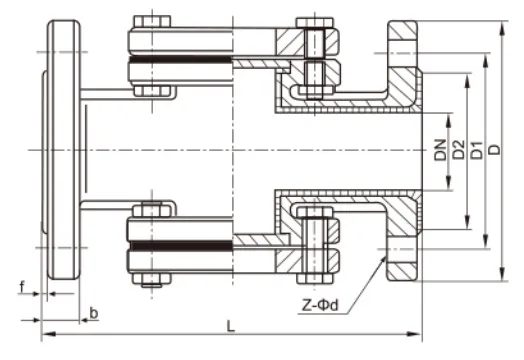

| Main connection dimensions and weight | ||||||
| Nominal diameter DN (mm) | standard value | |||||
| L | D | D1 | D2 | f | Z-Ød | |
| PN1.0MPa | ||||||
| 25 | 200 | 115 | 85 | 65 | 3 | 4-Φ14 |
| 32 | 260 | 140 | 100 | 78 | 3 | 4-Φ18 |
| 40 | 260 | 150 | 110 | 85 | 3 | 4-Φ18 |
| 50 | 320 | 165 | 125 | 100 | 3 | 4-Φ18 |
| 65 | 320 | 185 | 145 | 120 | 3 | 8-Φ18 |
| 80 | 360 | 200 | 160 | 135 | 3 | 8-Φ18 |
| 100 | 360 | 220 | 180 | 155 | 3 | 8-Φ18 |
| 125 | 440 | 250 | 210 | 185 | 3.5 | 8-Φ18 |
| 150 | 440 | 285 | 240 | 210 | 3.5 | 8-Φ22 |
| 200 | 440 | 340 | 295 | 265 | 3.5 | 8-Φ22 |
| PN1.6MPa | ||||||
| 25 | 200 | 115 | 85 | 65 | 3 | 4-Φ14 |
| 32 | 260 | 140 | 100 | 78 | 3 | 4-Φ18 |
| 40 | 260 | 150 | 110 | 85 | 3 | 4-Φ18 |
| 50 | 320 | 165 | 125 | 100 | 3 | 4-Φ18 |
| 65 | 320 | 185 | 145 | 120 | 3 | 8-Φ18 |
| 80 | 360 | 200 | 160 | 135 | 3 | 8-Φ18 |
| 100 | 360 | 220 | 180 | 155 | 3 | 8-Φ18 |
| 125 | 440 | 250 | 210 | 185 | 3.5 | 8-Φ18 |
| 150 | 440 | 285 | 240 | 210 | 3.5 | 8-Φ22 |
| 200 | 440 | 340 | 295 | 265 | 3.5 | 12-Φ22 |
