Follow the standards
Design and Manufacturing:	GB/T 12233
Structural length:	GB/T 12221
Flange standard:	HG/T 20592，ASME B16.5
Nominal Pressure	PN6，PN10，PN16，Class150
Connection method:	flanged
Pressure test:	GB/T 13927
Operation method:	Handwheel, umbrella gear, pneumatic, electric

Main component material list
serial number	Part Name	carbon steel	stainless steel		Ultra low carbon stainless steel
serial number	Part Name	C	P	R	PL	RL
1	valve body	WCB	CF8	CF8M	CF3	CF3M
2	support	WCB	CF8	CF8M	CF3	CF3M
3	valve disc	WCB	304	316	304	316L
4	cover pressing	WCB	304	316	304	316L
5	Lining layer	FEP(F46)/PTFE(F4)/PFA
6	filler	PTFE	PTFE	PTFE	PTFE	PTFE
7	bolt	25#	304	316	304	316
8	nut	25#	304	316	304	316
9	handwheel	QT450

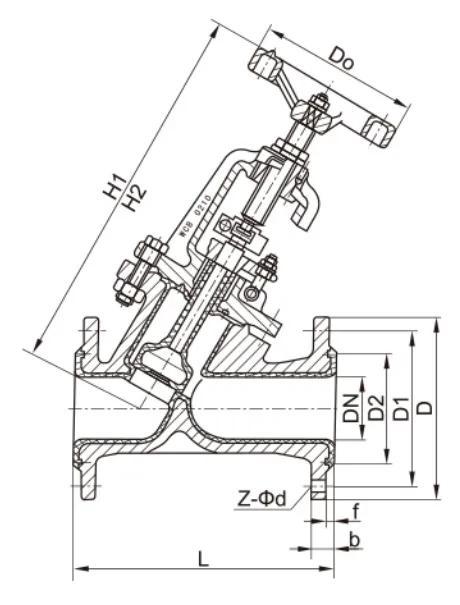

Main connection dimensions and weight
Nominal diameter DN (mm)	standard value
	L	D	D1	D2	f	Z-Φd	Kg
	PN1.0MPa
15	130	95	65	45	3	4-Φ14	4.5
20	150	105	75	55	3	4-Φ14	6
25	160	115	85	65	3	4-Φ14	7.5
32	180	140	100	78	3	4-Φ18	10
40	200	150	110	85	3	4-Φ18	13.5
50	230	165	125	100	3	4-Φ18	16
65	290	185	145	120	3.5	8-Φ18	23.5
80	310	200	160	135	3.5	8-Φ18	32
100	350	220	180	155	3.5	8-Φ18	40
125	400	250	210	185	4	8-Φ18	61
150	480	285	240	210	4	8-Φ22	80
200	600	340	295	265	4.5	8-Φ22	132
250	622	395	350	320	4.5	12-Φ22	240
300	698	445	400	368	5	12-Φ22	410
350	787	505	460	428	5	16-Φ22	490
400	914	565	515	482	5	16-Φ26	630
PN1.6MPa
15	130	95	65	45	3	4-Φ14	4.5
20	150	105	75	55	3	4-Φ14	6
25	160	115	85	65	3	4-Φ14	7.5
32	180	140	100	78	3	4-Φ18	10
40	200	150	110	85	3	4-Φ18	13.5
50	230	165	125	100	3	4-Φ18	16
65	290	185	145	120	3.5	8-Φ18	23.5
80	310	200	160	135	3.5	8-Φ18	32
100	350	220	180	155	3.5	8-Φ18	40
125	400	250	210	185	4	8-Φ18	61
150	480	285	240	210	4	8-Φ22	80
200	600	340	295	265	4.5	12-Φ22	132
250	622	405	355	320	4.5	12-Φ26	250
300	698	460	410	375	5	12-Φ26	420
350	787	520	470	435	5	16-Φ26	490
400	914	580	525	485	5	16-Φ30	630
